<< ASP.NET MVC Hosting - HostForLIFEASP.NET :: ASP.NET MVC Cheatsheet: An Easy-to-Use Manual |

ASP.NET MVC Hosting - HostForLIFEASP.NET :: Full Calender Integration In MVC

August 27, 2025 10:16 by author

This article describes how to use fullcalender.js to generate a weekly availability calendar in an ASP.NET MVc application. Event.user time slots may be simply handled with the help of the full calendar. Users can manage their routing schedule by creating a new event and assigning it to the calendar.

Routing calendars are generally useful for complex schedule management applications, such as hospital administration systems.

The management of that schedule in an Asp.Net MVc application will be examined here.

First Step
Make a calendar with complete availability. Incorporate these into your project:

Step 1
Create full availibility calender. Embed the following into your project:
https://adminlte.io/themes/dev/AdminLTE/pages/calendar.html
fullcalendar
fullcalendar-daygrid
fullcalendar-timegrid
fullcalendar-interaction
fullcalendar-bootstrap

moment.js is just used for displaying proper datetime formate in js.

Step 2
Create AvailibilityDto.cs used for getting available time slots list.
public class AvailibilityDto
{
public int Id { get; set; }
public string Title { get; set; }
public string Desc { get; set; }
public string Start_Date { get; set; }
public string End_Date { get; set; }
}

Step 3
Create CalanderController.cs for getting time slots list and return it to json.
using MVCAdminLTE3.Models;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Mvc;

namespace MVCAdminLTE3.Areas.Admin.Controllers
{
public class CalanderController : Controller
{
// GET: Admin/Calander
public ActionResult Index()
{
return View();
}

public ActionResult GetCalendarData()
{

List<AvailibilityDto> data = new List<AvailibilityDto>();

//Statically create list and add data
AvailibilityDto infoObj1 = new AvailibilityDto();
infoObj1.Id = 1;
infoObj1.Title = "I am available";
infoObj1.Desc = "Description 1";
infoObj1.Start_Date = "2020-08-16 22:37:22.467";
infoObj1.End_Date = "2020-08-16 23:30:22.467";
data.Add(infoObj1);

AvailibilityDto infoObj2 = new AvailibilityDto();
infoObj2.Id = 2;
infoObj2.Title = "Available";
infoObj2.Desc = "Description 1";
infoObj2.Start_Date = "2020-08-17 10:00:22.467";
infoObj2.End_Date = "2020-08-17 11:00:22.467";
data.Add(infoObj2);


AvailibilityDto infoObj3 = new AvailibilityDto();
infoObj3.Id = 3;
infoObj3.Title = "Meeting";
infoObj3.Desc = "Description 1";
infoObj3.Start_Date = "2020-08-18 07:30:22.467";
infoObj3.End_Date = "2020-08-18 08:00:22.467";
data.Add(infoObj3);

return Json(data, JsonRequestBehavior.AllowGet);

}


[HttpPost]
public ActionResult UpdateCalanderData(AvailibilityDto model)
{
var id = model.Id;
//Write your update code here
return Json(id, JsonRequestBehavior.AllowGet);
}

}
}

Step 4
Create mycalander.js
$(function () {

/* initialize the external events
-----------------------------------------------------------------*/
function ini_events(ele) {
ele.each(function () {

// create an Event Object (http://arshaw.com/fullcalendar/docs/event_data/Event_Object/)
// it doesn't need to have a start or end
var eventObject = {
title: $.trim($(this).text()) // use the element's text as the event title
}

// store the Event Object in the DOM element so we can get to it later
$(this).data('eventObject', eventObject)

// make the event draggable using jQuery UI
$(this).draggable({
zIndex: 1070,
revert: true, // will cause the event to go back to its
revertDuration: 0 // original position after the drag
})

})
}

ini_events($('#external-events div.external-event'))

/* initialize the calendar
-----------------------------------------------------------------*/
//Date for the calendar events (dummy data)
var date = new Date()
var d = date.getDate(),
m = date.getMonth(),
y = date.getFullYear()

var Calendar = FullCalendar.Calendar;
var Draggable = FullCalendarInteraction.Draggable;

var containerEl = document.getElementById('external-events');
var checkbox = document.getElementById('drop-remove');
var calendarEl = document.getElementById('calendar');

// initialize the external events
// -----------------------------------------------------------------

new Draggable(containerEl, {
itemSelector: '.external-event',
eventData: function (eventEl) {
console.log(eventEl);
return {
title: eventEl.innerText,
backgroundColor: window.getComputedStyle(eventEl, null).getPropertyValue('background-color'),
borderColor: window.getComputedStyle(eventEl, null).getPropertyValue('background-color'),
textColor: window.getComputedStyle(eventEl, null).getPropertyValue('color'),
};
}
});

GetData();

function GenerateCalander(events) {
var calendar = new Calendar(calendarEl, {

//Plugins for full canlender

//plugins: ['bootstrap', 'interaction', 'dayGrid', 'timeGrid'],
//initialView: 'timeGridWeek',

plugins: ['bootstrap', 'interaction', 'timeGrid'],
initialView: 'timeGridWeek',

//select your timeZone as u wish to select
timeZone: 'UTC',

//Slot duration fix to 30 minutes now .......you can chage any slot duration from here.
slotDuration: '00:30:00',
slotLabelInterval: 30,
slotMinutes: 30,
snapDuration: '01:00:00',

header: {
left: 'prev,next today',
center: 'title',
//right: 'dayGridMonth,timeGridWeek,timeGridDay'
right: 'timeGridWeek'
},

//Random default events
events: events
,

editable: true,
droppable: true, // this allows things to be dropped onto the calendar !!!
drop: function (info) {
// is the "remove after drop" checkbox checked?
if (checkbox.checked) {
// if so, remove the element from the "Draggable Events" list
info.draggedEl.parentNode.removeChild(info.draggedEl);
}
},
nextDayThreshold: "00:00:00",
nowIndicator: true,

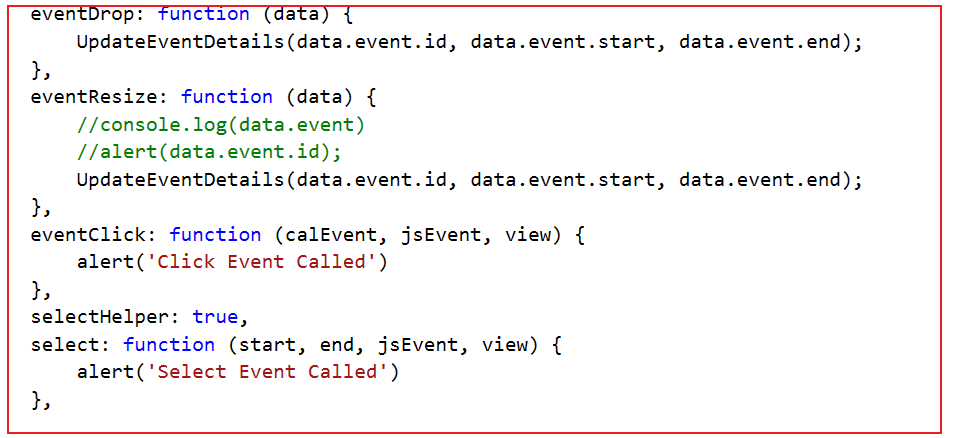

eventDrop: function (data) {
UpdateEventDetails(data.event.id, data.event.start, data.event.end);
},
eventResize: function (data) {
//console.log(data.event.id)
//update your event here
UpdateEventDetails(data.event.id, data.event.start, data.event.end);
},
eventClick: function (calEvent, jsEvent, view) {
//Work on click event like delete and view details
alert('Click Event Called')
},
selectHelper: true,
select: function (start, end, jsEvent, view) {
//called when an event is selected
alert('Select Event Called')
},

});

calendar.render();
}


/* ADDING EVENTS */
var currColor = '#3c8dbc' //Red by default
//Color chooser button
var colorChooser = $('#color-chooser-btn')
$('#color-chooser > li > a').click(function (e) {
e.preventDefault()
//Save color
currColor = $(this).css('color')
//Add color effect to button
$('#add-new-event').css({
'background-color': currColor,
'border-color': currColor
})
})
$('#add-new-event').click(function (e) {
e.preventDefault()
//Get value and make sure it is not null
var val = $('#new-event').val()
if (val.length == 0) {
return
}

//Create events
var event = $('<div />')
event.css({
'background-color': currColor,
'border-color': currColor,
'color': '#fff'
}).addClass('external-event')
event.html(val)
$('#external-events').prepend(event)

//Add draggable funtionality
ini_events(event)

//Remove event from text input
$('#new-event').val('')
})




function GetData() {
var events = [];
$.ajax({
url: 'http://localhost:3617/admin/Calander/GetCalendarData',
type: "GET",
dataType: "JSON",
success: function (result) {
$.each(result, function (i, data) {
events.push(
{
title: data.Title,
description: data.Desc,
start: moment(data.Start_Date).format('YYYY-MM-DD HH:mm:ss'),
end: moment(data.End_Date).format('YYYY-MM-DD HH:mm:ss'),
backgroundColor: '#00a65a', //Success (green)
borderColor: '#00a65a', //Success (green)
id: data.Id,
allDay: false,
});
});
GenerateCalander(events);

}
})



}

function UpdateEventDetails(eventId, StartDate, EndDate) {
debugger
var object = new Object();
object.Id = parseInt(eventId);
object.Start_Date = StartDate;
object.End_Date = EndDate;

$.ajax({
url: 'http://localhost:3617/admin/Calander/UpdateCalanderData',
type: "POST",
dataType: "JSON",
data: object,
success: function (result) {
debugger;
alert("updated successfully-Id:" + result)

}

});

}


});

Step 5
index.cshtml page
@{
ViewBag.Title = "Index";
Layout = "~/Areas/Admin/Views/Shared/_Layout.cshtml";
}


<link href="~/Areas/Admin/CalanderCssJs/fullcalendar/main.min.css" rel="stylesheet" />
<link href="~/Areas/Admin/CalanderCssJs/fullcalendar-daygrid/main.min.css" rel="stylesheet" />
<link href="~/Areas/Admin/CalanderCssJs/fullcalendar-timegrid/main.min.css" rel="stylesheet" />
<link href="~/Areas/Admin/CalanderCssJs/fullcalendar-bootstrap/main.min.css" rel="stylesheet" />



<section class="content">
<div class="container-fluid">
<div class="row">
<div class="col-md-3">
<div class="sticky-top mb-3">
<div class="card">
<div class="card-header">
<h4 class="card-title">Draggable Events</h4>
</div>
<div class="card-body">

<div id="external-events">
<div class="external-event bg-success">Lunch</div>
<div class="external-event bg-warning">Go home</div>
<div class="external-event bg-info">Do homework</div>
<div class="external-event bg-primary">Work on UI design</div>
<div class="external-event bg-danger">Sleep tight</div>
<div class="checkbox">
<label for="drop-remove">
<input type="checkbox" id="drop-remove">
remove after drop
</label>
</div>
</div>
</div>

</div>

<div class="card">
<div class="card-header">
<h3 class="card-title">Create Event</h3>
</div>
<div class="card-body">
<div class="btn-group" style="width: 100%; margin-bottom: 10px;">

<ul class="fc-color-picker" id="color-chooser">
<li><a class="text-primary" href="#"><i class="fas fa-square"></i></a></li>
<li><a class="text-warning" href="#"><i class="fas fa-square"></i></a></li>
<li><a class="text-success" href="#"><i class="fas fa-square"></i></a></li>
<li><a class="text-danger" href="#"><i class="fas fa-square"></i></a></li>
<li><a class="text-muted" href="#"><i class="fas fa-square"></i></a></li>
</ul>
</div>

<div class="input-group">
<input id="new-event" type="text" class="form-control" placeholder="Event Title">
<div class="input-group-append">
<button id="add-new-event" type="button" class="btn btn-primary">Add</button>
</div>

</div>

</div>
</div>
</div>
</div>

<div class="col-md-9">
<div class="card card-primary">
<div class="card-body p-0">

<div id="calendar"></div>
</div>

</div>

</div>

</div>

</div>
</section>

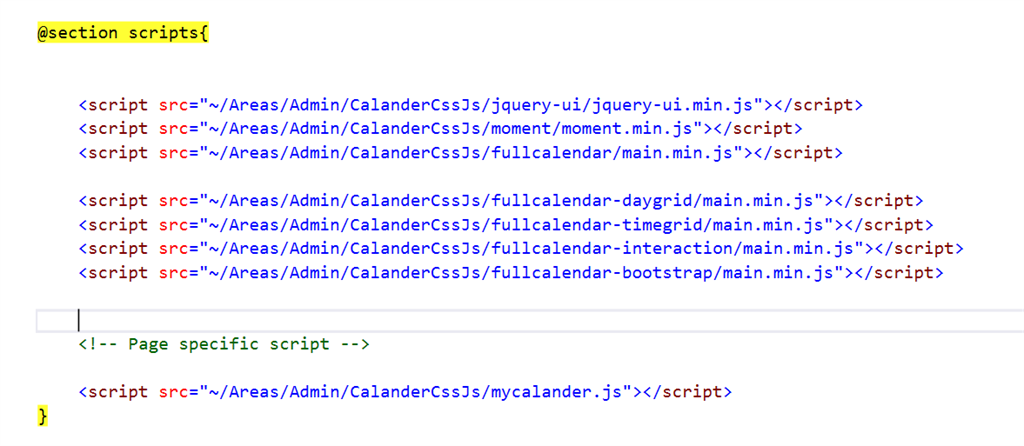

@section scripts{


<script src="~/Areas/Admin/CalanderCssJs/jquery-ui/jquery-ui.min.js"></script>
<script src="~/Areas/Admin/CalanderCssJs/moment/moment.min.js"></script>
<script src="~/Areas/Admin/CalanderCssJs/fullcalendar/main.min.js"></script>

<script src="~/Areas/Admin/CalanderCssJs/fullcalendar-daygrid/main.min.js"></script>
<script src="~/Areas/Admin/CalanderCssJs/fullcalendar-timegrid/main.min.js"></script>
<script src="~/Areas/Admin/CalanderCssJs/fullcalendar-interaction/main.min.js"></script>
<script src="~/Areas/Admin/CalanderCssJs/fullcalendar-bootstrap/main.min.js"></script>




<script src="~/Areas/Admin/CalanderCssJs/mycalander.js"></script>
}

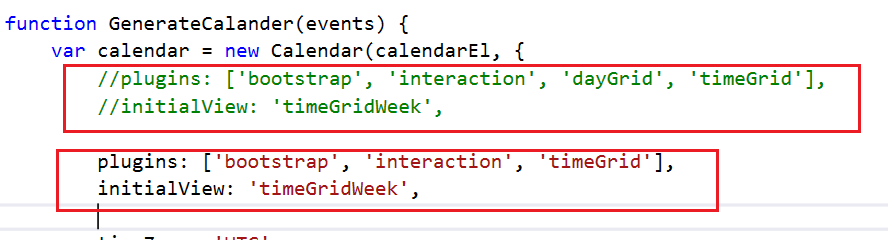

plugins: ['bootstrap', 'interaction', 'dayGrid', 'timeGrid'] for displaying full calender

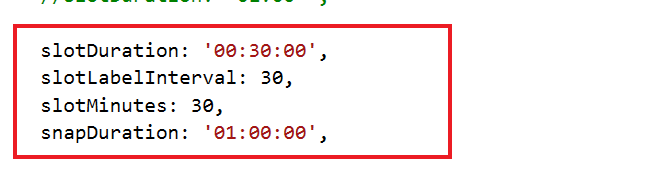

Slot duration fix to 30 minutes now .......you can chage any slot duration from here.

Function for getting slot list,
function GetData() {
var events = [];
$.ajax({
url: 'http://localhost:3617/admin/Calander/GetCalendarData',
type: "GET",
dataType: "JSON",
success: function (result) {
$.each(result, function (i, data) {
events.push(
{
title: data.Title,
description: data.Desc,
start: moment(data.Start_Date).format('YYYY-MM-DD HH:mm:ss'),
end: moment(data.End_Date).format('YYYY-MM-DD HH:mm:ss'),
backgroundColor: '#00a65a', //Success (green)
borderColor: '#00a65a', //Success (green)
id: data.Id,
allDay: false,
});
});
GenerateCalander(events);

}
})



}

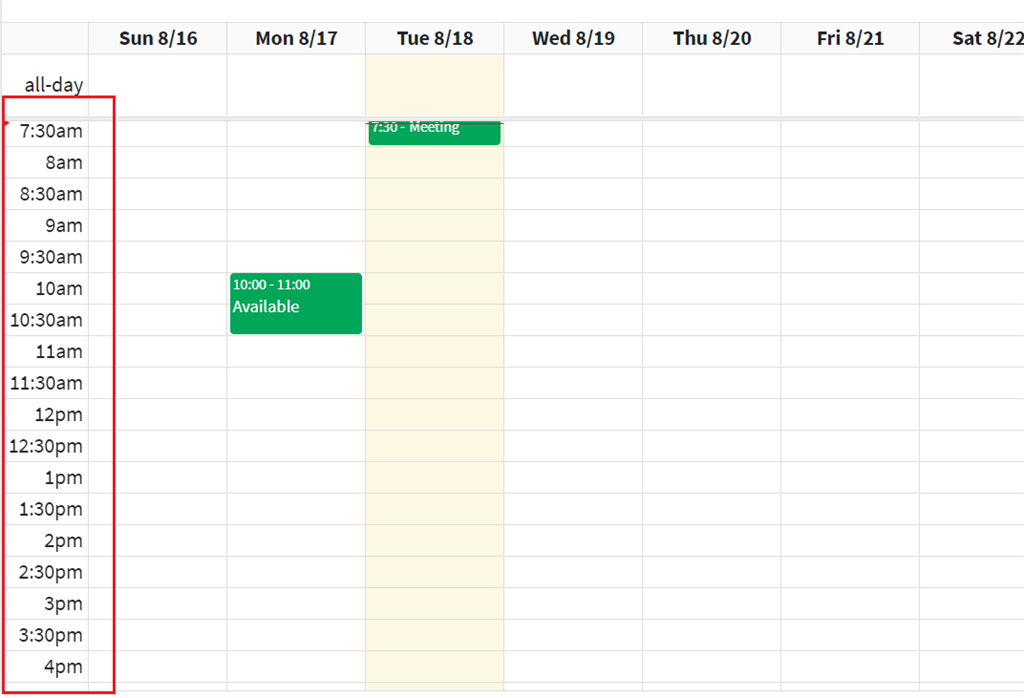

So here we see that allocated timing slots are displayed in green color badges and some descriptions can be written there as we want them to be displayed.
